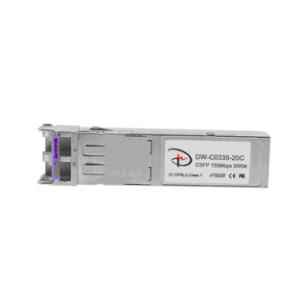

155Mbps,Tx1310nm/Rx1550nm;Compact SFP bidi, 20KM, DDM 0ºC~+70ºC,Optic Module/Transceiver
Product description:
The CSFP transceivers are high performance, cost effective modules supporting 155Mbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a
trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA
Features:
Support 155Mbps data links
1310nm FP laser and PIN photodetector for 20km transmission
2xBi-directional transceivers in 1 SFP transceiver package
Compliant with CSFP MSA Option 2 and SFF-8472
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-3 system
Compatible with RoHS
+3.3V single power supply
Operating case temperature:0 to +70°C(Commercial) -40°C to +85°C (Industrial)
Applications
SONET OC-3 system
Fast Ethernet
Switch to Switch interface
Point to Point FTTH Application
Other optical transmission systems
Ordering information:
|
Part Number |
Description |
Download |
|
DW-C0335-20T(D) |
155Mbps, Tx1310nm / Rx 1550nm; Compact SFP bidi, 20KM, DDM -40ºC ~ +85ºC |
Download |
|
DW-C0335-20C(D) |
155Mbps, Tx1310nm / Rx 1550nm; Compact SFP bidi, 20KM, DDM 0ºC ~ +70ºC |
Download |
